 by Andrea Bartolotti

HECO EFG Web App Updated with the New EFG PSK System

The HECO EFG Web App, dedicated to the design of HECO connection systems for timber-concrete composite floors, has been updated to include the new EFG PSK connection system, keeping the application aligned with the evolution of the HECO product range.

Developed by TimberTech, the Web App guides designers through every stage of the design process. Users can define the floor geometry, material properties and the main design parameters, including the presence of insulation layers, applied loads and support conditions.

The design and verification process is fully interactive: every change to the project parameters automatically updates the verification results, allowing designers to evaluate the behaviour of the entire structural system in real time. The application performs both Ultimate Limit State (ULS) and Serviceability Limit State (SLS) checks, with the possibility of analysing the structure under both short-term and long-term conditions. At the end of the calculation, the Web App automatically generates a comprehensive calculation report together with a detailed installation drawing to support the correct on-site installation of the system.

Try the HECO EFG Web App

To learn more about the Web App and start a new project, access the application directly.



in En News 0 comments
 by Francesco Callovi

04/06/2026 – Ver. 111 – Added a new material: FLO.LAM OAK hardwood glued laminated timber

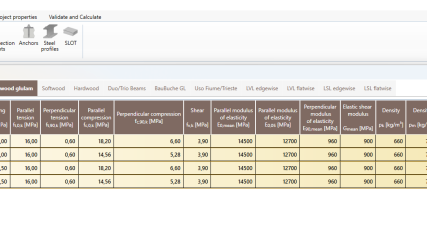

In the latest software version, FLO.LAM OAK hardwood glued laminated timber by Florian has been integrated into the timber materials library: a high-quality solution that expands structural design possibilities.

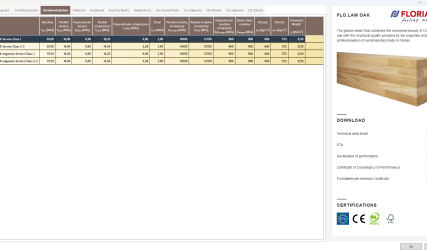

The new material includes a dedicated information sheet, directly accessible within the software, allowing users to download the official technical documentation for consultation and use during the design phase:

  • Technical data sheet
  • ETA certificate
  • Declaration of Performance (DoP)
  • Certificate of constancy of performance
  • Formaldehyde emission certificate



in Software Updates 0 comments
 by Francesco Callovi

11/03/2026 – Ver. 110 – Added satellite view, updated element name visualization and introduced a dedicated chapter in the report, enhanced the Selection View filter

In the latest version of the software we added these new features:

  • Satellite view added in Geolocation: when assigning geographic coordinates, the satellite view can now be used to pinpoint the project location with greater accuracy.
  • Updated element name display button: in the View tab, the Names button now shows element names according to the selected element type.
  • New chapter for structural element identification in the calculation report: a dedicated chapter with illustrative images has been added, allowing clear identification of the various structural elements in the model.
  • Enhanced Selection View filter: results displayed in the Analysis tab can now be filtered quickly and precisely, making data consultation faster and more efficient.
  • Bug fixing and small improvements.



Satellite view in Geolocation
Element name display button
Selection View filter in the analysis results
Identification of vertical elements
Identification of beams
Identification of floors
in Software Updates 0 comments
 by Francesco Callovi

15/04/2025 – Ver. 108 – New module for existing buildings and vertical additions, update of CLT panels by XLAM Dolomiti and improvement of IFC export

In the latest version of the software we added these new features:

  • Existing buildings and vertical additions: thanks to the additional module “Exisiting buildings and vertical additions” you can now assess the seismic actions on timber vertical additions by defining a floor response spectrum. It is also possible to define the knowledge level of structural elements and to carry out safety checks according to the EN 1998-3 by reducing the values of the mechanical properties of materials with confidence factors.
  • Update of XLAM Dolomiti CLT panels.
  • Improved IFC export for light-frame wall.
  • Bug fixing and small improvements.



definition of spectral parameters
definition of spectral parameters
Floor design spectrum
Confidence factors values
Confidence factors values
assignment of knowledge levels
assignment of knowledge levels
Visualization of knowledge levels
Visualization of knowledge levels
Export IFC
in Software Updates 0 comments
 by Francesco Callovi

11/02/2025 Ver. 107 – New fire protections, added button for floor diaphragms visualization, update of software technical specifications in the report

In the latest version of the software we added these new features:

  • New fire protections added: possibility of filling the cavities of joists floors and frame walls with non-combustible insulation in the module for fire design. In this case the carbonization of the sides of the section in contact with the insulation is prevented.
  • Addition of a new button for floor diaphragms visualization: in the Analysis tab it is now possible to view the floor diaphragms established automatically by the software or defined by the user.
  • Update of software technical specifications in the report: the software license number and the expiry date of the updates have been added in the report.
  • Improvment of floor property inspector.
  • Bug fixing and small improvements.



in Software Updates 0 comments
 by Alice Aufrere

24/09/2024 Ver. 106 – New Rothoblaas SLOT connectors, update of Artuso Legnami CLT panels

In the latest version of the software we added these new features:

  • Rothoblaas SLOT connectors: it is now possible to use SLOT connectors for CLT panels to obtain joints with extremely high stiffness and strength.
  • Artuso Legnami CLT panels update
  • Hold-downs update: the default hold-downs have been updated.
  • Bug fixing and small improvements.



in Software Updates 0 comments
 by Alice Aufrere

15/07/2024 Ver. 105 – Improved validation and optimization, RothoBlaas connection catalog update, possibility to assign notes to structural elements, display of notes and names in 3D

In the latest version of the software we added these new features:

  • Improved validation and optimization: during the optimization phase, the software automatically converts the walls into the secondary elements where necessary.
  • Hold downs with gap: it is now possible to use the hold downs with gap produced by Rothoblaas.
  • Rothoblaas connections update: the connections produced by Rothoblaas have been updated (hold down, shear connections and tensile plates).
  • Shear connections with acoustic profiles: it is now possible to calculate shear connections with acoustic profiles produced by Rothoblaas.
  • Notes: you can now assign a note to structural elements.
  • Viewing in the 3D model: you can now see the notes and names of structural elements directly in the 3D model.
  • Updated list of municipalities: the Italian municipalities have been updated.
  • Bug fixing and small improvements.



in Software Updates 0 comments
